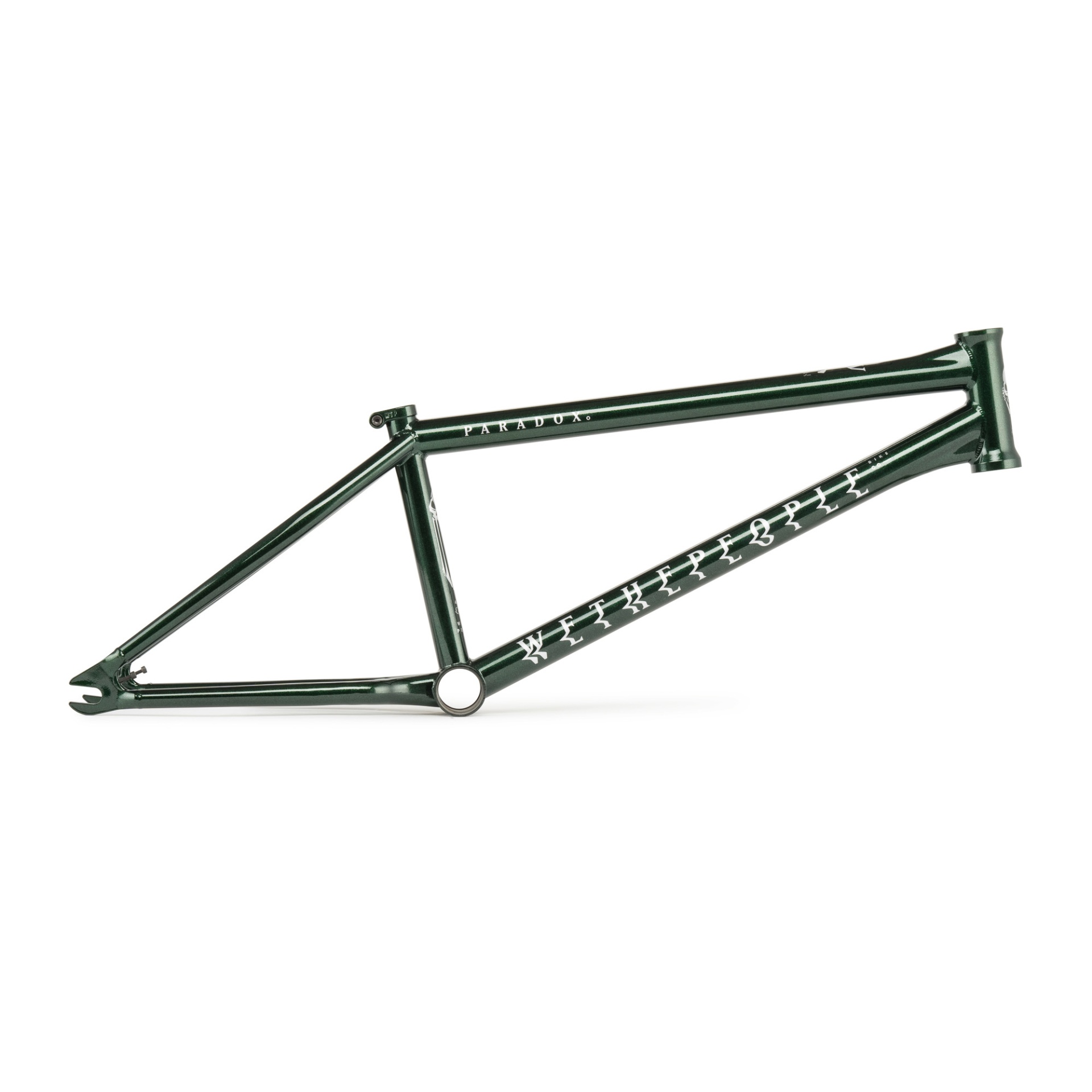

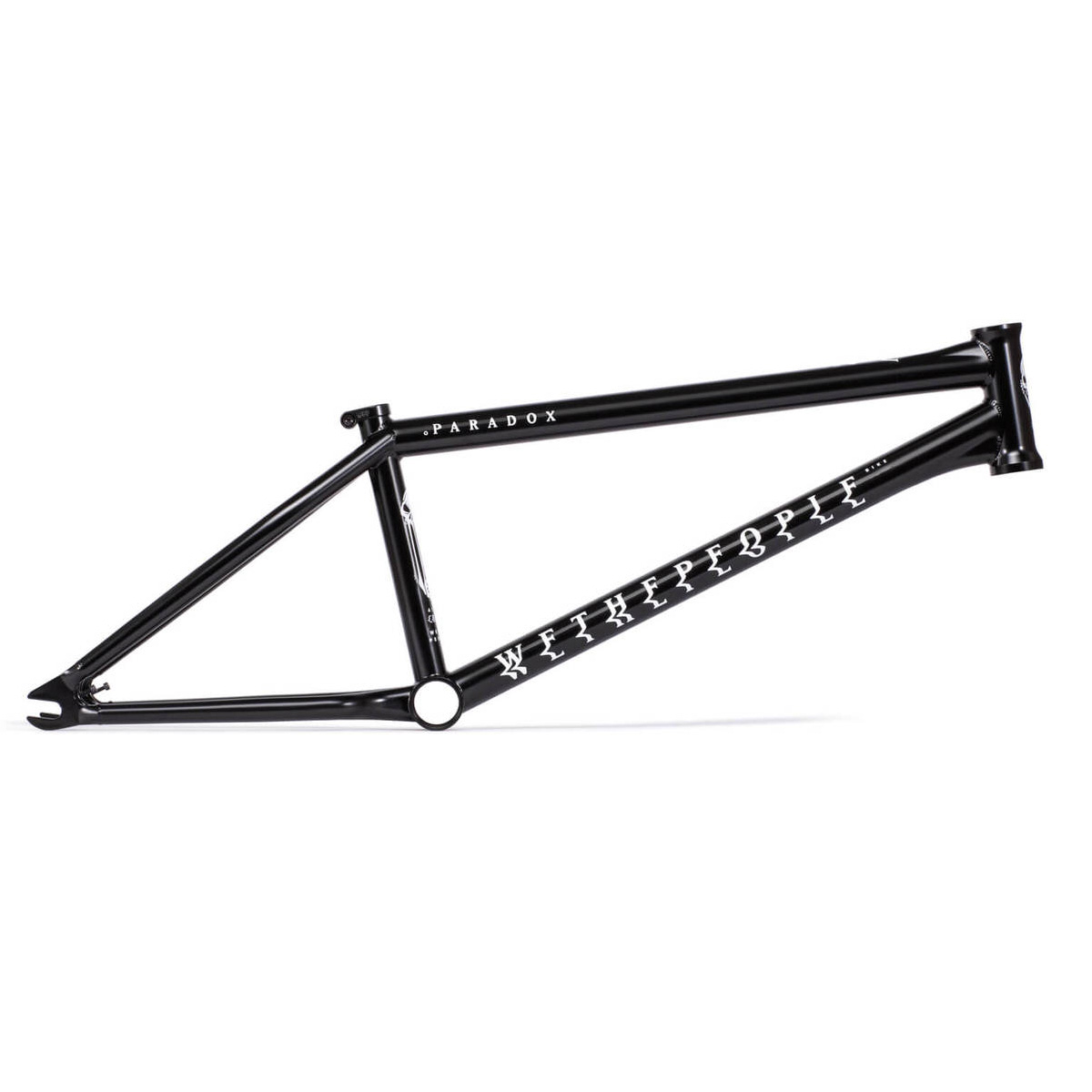

Wethepeople - Paradox Frame

PARADOX
TEAM STREET FRAME

WE TOOK OUR INCREDIBLY POPULAR BATTLESHIP FRAME AND GAVE IT A FULL INJECTION OF OUR LATEST FRAME TECHNOLOGY MAKING THE ABSOLUTE ULTIMATE STREET FRAME.
BOASTING OUR NEW INVEST CASTED YOKE, SEAT STAY BRIDGE, DROPOUT AND SEAT CLAMP, THE PARADOX FRAME IS ONE OF THE MOST FEATURE PACKED FRAMES WE’VE EVER MADE. AVAILABLE IN A LONGER 21.25” SIZE FOR ALL THE TALLER STREET RIDERS NEEDING A LONGER FRAME WITH SUPER RESPONSIVE GEOMETRY.
INCLUDES OUR LIFETIME GUARANTEE

SPECIFICATIONS
TUBING:
butted, seamless 4130 chromoly tubing japanese

TOPTUBE:
20.75” / 21" / 21.25" TT

CHAINSTAY LENGTH:
12.75" slammed, 13” centered (with 25-9 gearing)

ANGLES:
HT: 75.5°, ST: 71°

BOTTOM BRACKET:
type: mid-bb, width: 74mm, height: 11.7 ", cnc machined and heat-treated

HEADTUBE:
taller 127mm shape, cnc machined and heat-treated, integ. h / set,

DROPOUTS:
7.5mm, invest cast crmo with integrated chain tensioner bolts

SPECIALS:

fully brakeless frame

unique invest casted yoke/wishbone for increased stiffness and tire/sprocket clearance with super short chainstay

hydroformed top and down tube for the strongest possible connection to the headtube

oversize 20.5mm thick seat stays for increased stiffness

super short 12.75” chainstay

steeper 75.5 degree headtube

wider rear triangle allows clearance for a 2.5 " tire

Invest casted seat stay bridge

Invest casted seat clamp

INCLUDES LIFETIME GUARANTEE

COLORS:
glossy black ed, matt coral red, translucent gold

WEIGHT:
TBC

FRAME GEOMETRY

Top Tube: 20.75”, 21" or 21.25"
Chain Stay: 12.75”-13.2”
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Bottom Bracket Height: 11.7”
Stand Over Height: 9"
