Wethepeople - Message Frame

Wethepeople - Message Frame
Wethepeople - Message Frame
Wethepeople - Message Frame
Wethepeople - Message Frame
Wethepeople - Message Frame
Wethepeople - Message Frame
Wethepeople - Message Frame

0 unidades em stock

399,95 €

Adicionar à wishlist

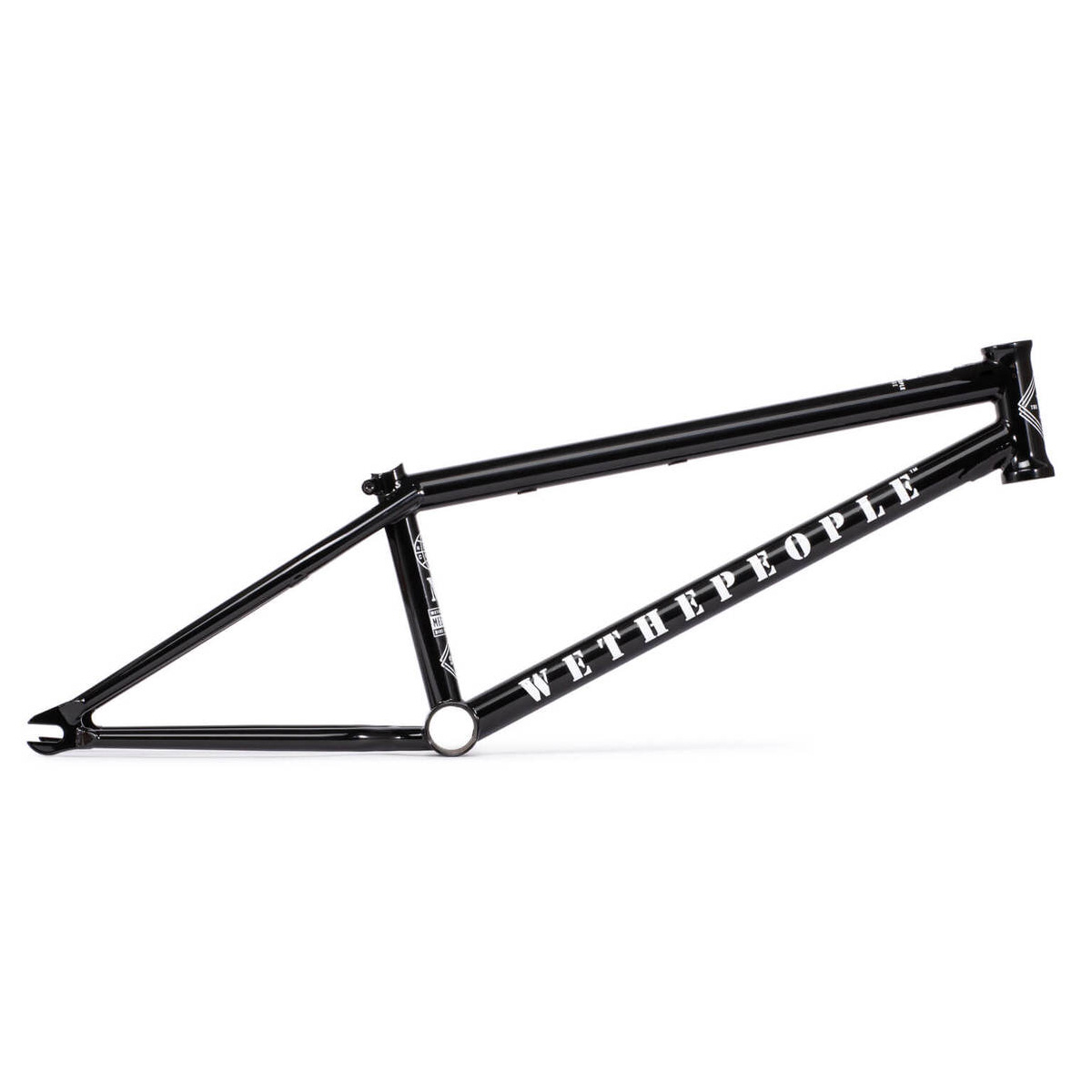

MESSAGE FRAME
WE WANTED TO GROW FROM OUR CURRENT FRAME LINE, AND OFFER A FULL AFTERMARKET ALTERNATIVE FOR RIDERS THAT NEED A STRONG, BUT LIGHTWEIGHT TECHNICAL PARK SETUP BUILT TO LAST. THE MESSAGE FRAME BOASTS A LOWER STAND OVER HEIGHT, FAST GEOMETRY AND CUSTOM DUAL CABLE BRAKE HARDWARE MAKING IT PERFECT FOR THE TECHNICAL RAMP RIDER.
INCLUDES LIFETIME GUARANTEE.

SPECIFICATIONS
TUBING:
butted, seamless 4130 chromoly tubing japanese

TOPTUBE:
20.3" 20.6" or 21"TT

CHAINSTAY LENGTH:
12.95" slammed, 13.2" centered with 25-9

ANGLES:
HT: 75.5 °, ST: 71 °

BOTTOM BRACKET:
mid-bb width: 74mm, height: 11.5 ", cnc machined and heat-treated

HEADTUBE:
drilled for gyro tabs, cnc machined and heat-treated, integ. h / set

DROPOUTS:
6mm thick laser cut and heat-treated

SPECIAL FEATURES:

super strong, technical park frame

wider rear triangle allows clearance for a 2.50" tire

extruded top tube with integrated threads for cable guides

slim profile integrated seat clamp with 6mm hex

PLEASE NOTE - This frame fetaures Pivot-3 type removable brake mounts, but brake hardware is NOT included. This frame is ONLY compatible with the Wethepeople MESSAGE P-3 removable brake hardware kit and will not fit the regular Universal P3 hardware kit.

COLORS:
galactic purple, astroturf green

WEIGHT:
2.4kg / 5.32lbs (21")

WHEN DEVELOPING THE MESSAGE FRAME, WE TRIED TO ADDRESS MANY OF THE ISSUES THAT TRADITIONAL PARK FRAMES SUFFER FROM. THE FEEDBACK WE HAD FROM SEVERAL PRO-LEVEL PARK RIDERS, WAS THAT THE CHAINSTAYS ON THEIR FRAMES TEND TO TWIST AFTER HEAVY SIDE IMPACTS AND LANDINGS. TO COMBAT THIS, WE BEEFED UP THE CHAIN AND SEAT STAYS RESULTING IN A MUCH STIFFER, STRONGER FRAME, WITHOUT SACRIFICING RESPONSIVENESS.

FRAME GEOMETRY

Top Tube: 20.3"/20.6"/21"
Chain Stay: 12.95" - 13.5"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Bottom Bracket Height: 11.5”
Stand Over Height: 8”
