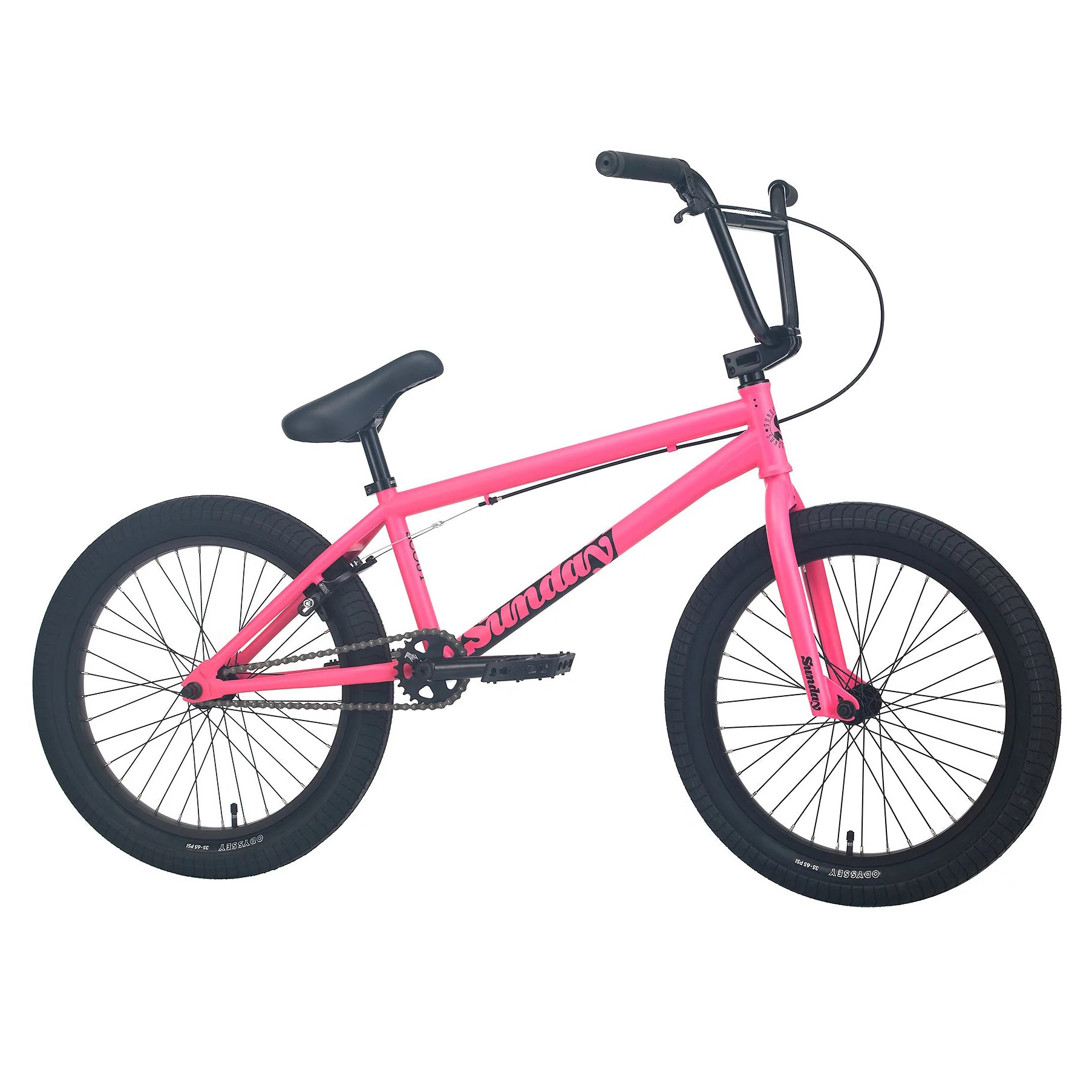

Sunday - Scout Hot Pink 2023

The Scout is a great bike for dedicated riders on a budget.

The Scout line is built with more aftermarket parts than ever before, including the Odyssey Twisted Pro pedal and Path Pro tire. Bike shops and riders will appreciate the fully sealed front and rear hubs, and awesome details like Odyssey signature grips and the Springfield Brake system.

Choose from two different top tube lengths and some truly amazing color finishes when you’re ready to rip.

Key Features
Sunday Freeze Top Load Stem
Odyssey Springfield Brakes and Lever
Odyssey Path Pro OEM 2.40" Tires
Odyssey Twisted Pro Pedals
Sunday Badge Pivotal Seat
FSA Headset
Sealed Front and Rear Hubs

Specifications
Frame: Sunday Scout, 20.75" top tube, integrated 1-1/8" head tube, chromoly down tube and dropouts
Fork: Sunday Scout, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar: Sunday, 2-piece
Stem: Sunday Freeze top load, 48mm
Headset: FSA integrated, 1-1/8"
Alloy Cap: FSA aluminum cap
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Odyssey Broc Raiford
Seat: Sunday Badge, Pivotal
Seat post: Sunday, Pivotal
Seat Clamp: Sunday
Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 170mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: P-7X aluminum, 20", 20H
Front Hub: Sunday, 36H, low-flange, sealed, 3/8" axle
Rear Hub: Sunday 36H, sealed, 14mm axle w/ 9T Driver
Spokes: 14g steel, black
Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 12.16kg - 26.82lbs (with brakes)

Frame Geometry
Top Tube Length: 20.75"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5"
Standover: 9”

Handlebar Geometry
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°

*Specs subject to change without notice.
