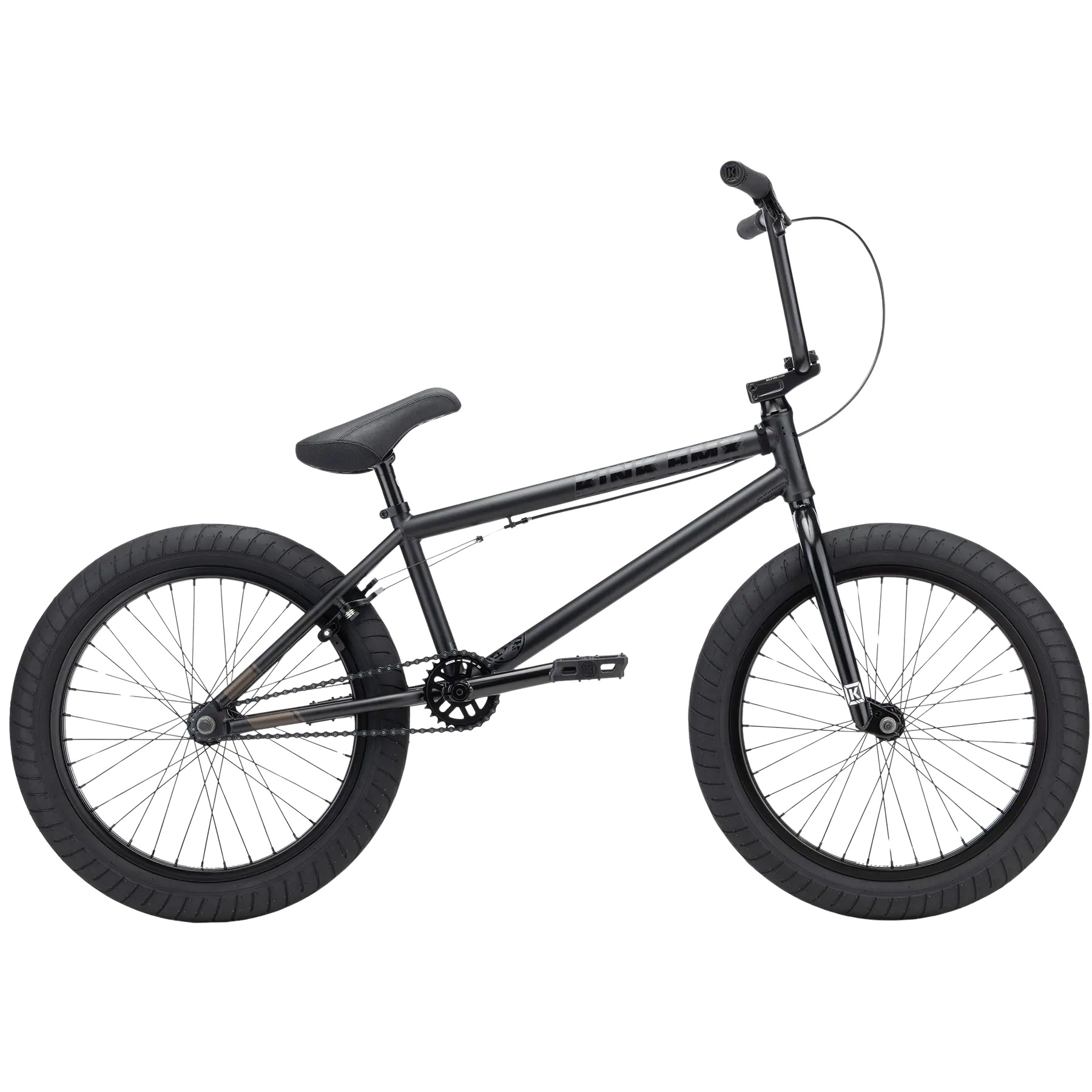

Kink - Whip

The Whip is where our line really gets exciting. This bike is great for all types of riding, from street, plaza, park, and even trails. The 100% 4130 chromoly tubing used throughout the entire frame, fork, and handlebar set means you can go hard on this bike without worry. On top of that, the Whip features fully sealed bearings everywhere, which means a smoother ride and drastically reduced maintenance. The Whip comes in a Midnight Black colorway and is also available in an XL size for taller riders.

 GEOMETRY
Toptube Length: 20.5"
Chainstay Length: 13.25"
Headtube Angle: 75°
Seattube Angle: 71°
Standover Height: 9″
Bottom Bracket Height: 11.6"
Fork Offset: 32mm

TECH SPECS
FRAME Kink Whip 100% 4130 Chromoly
PEDALS Kink Hemlock
FORK Kink Stryker 100% 4130 Chromoly Tapered Fork Legs
CHAIN Mission 410
BARS Kink T900 9" 100% 4130 Chromoly
SPROCKET Mission Charge 25T 6061 Aluminum
GRIPS Kink Form, Thrust Barends

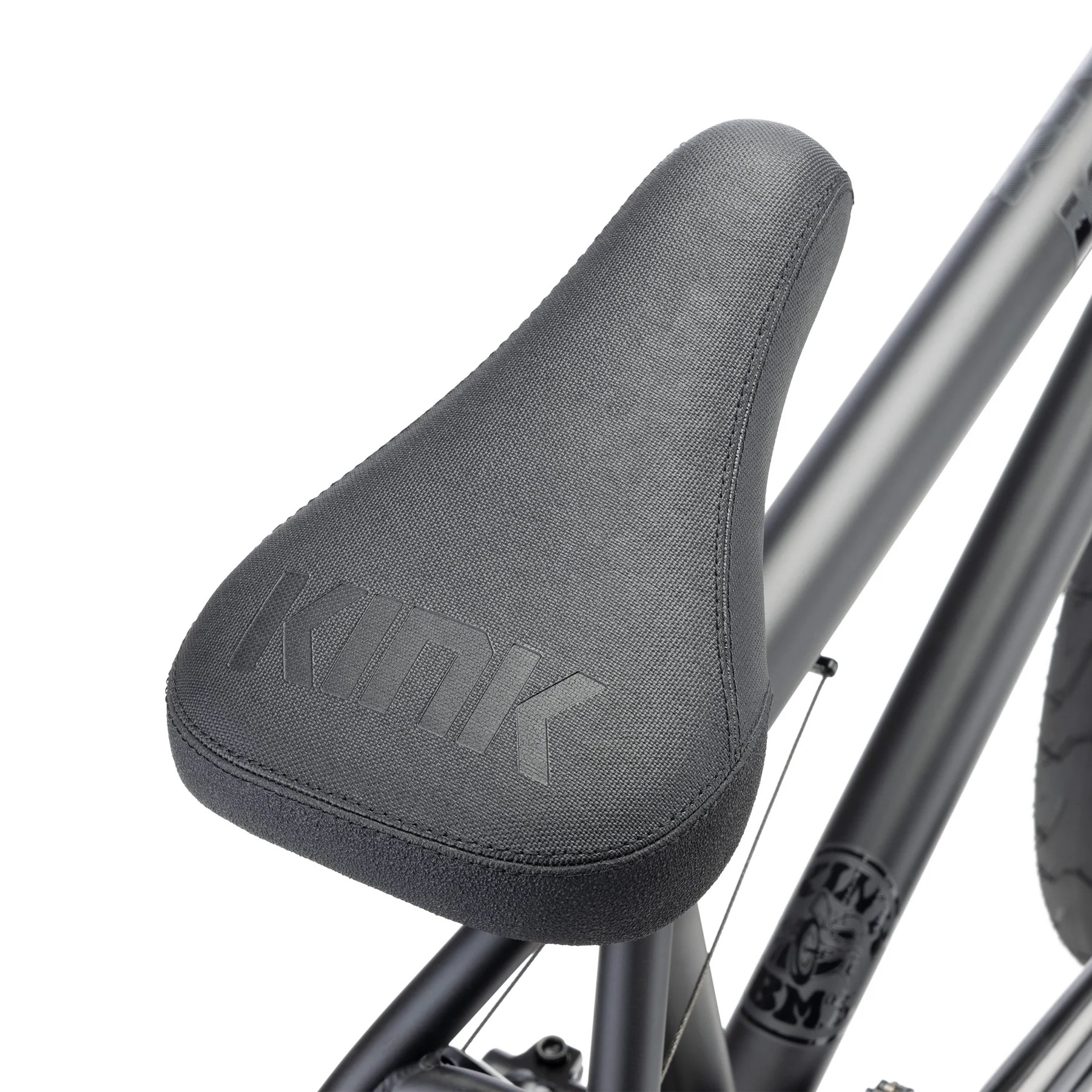

SEAT Kink Duran Stealth

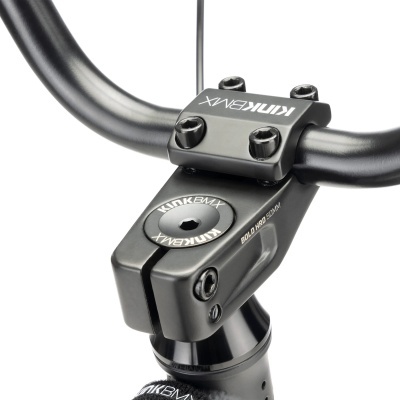

STEM Kink Bold HRD 50mm
SEAT POST Mission Stealth
HEADSET Mission Sealed Integrated (41.8 x 45)
SEAT CLAMP Mission Slim Clamp
BRAKE LEVER Mission Token
FRONT HUB Mission Foxtrot Sealed 3/8″ Axle
BRAKE CABLE Mission L4 Linear
REAR HUB Mission Engage Sealed Cassette 14mm
BRAKES Mission Cease V2
DRIVER 9T

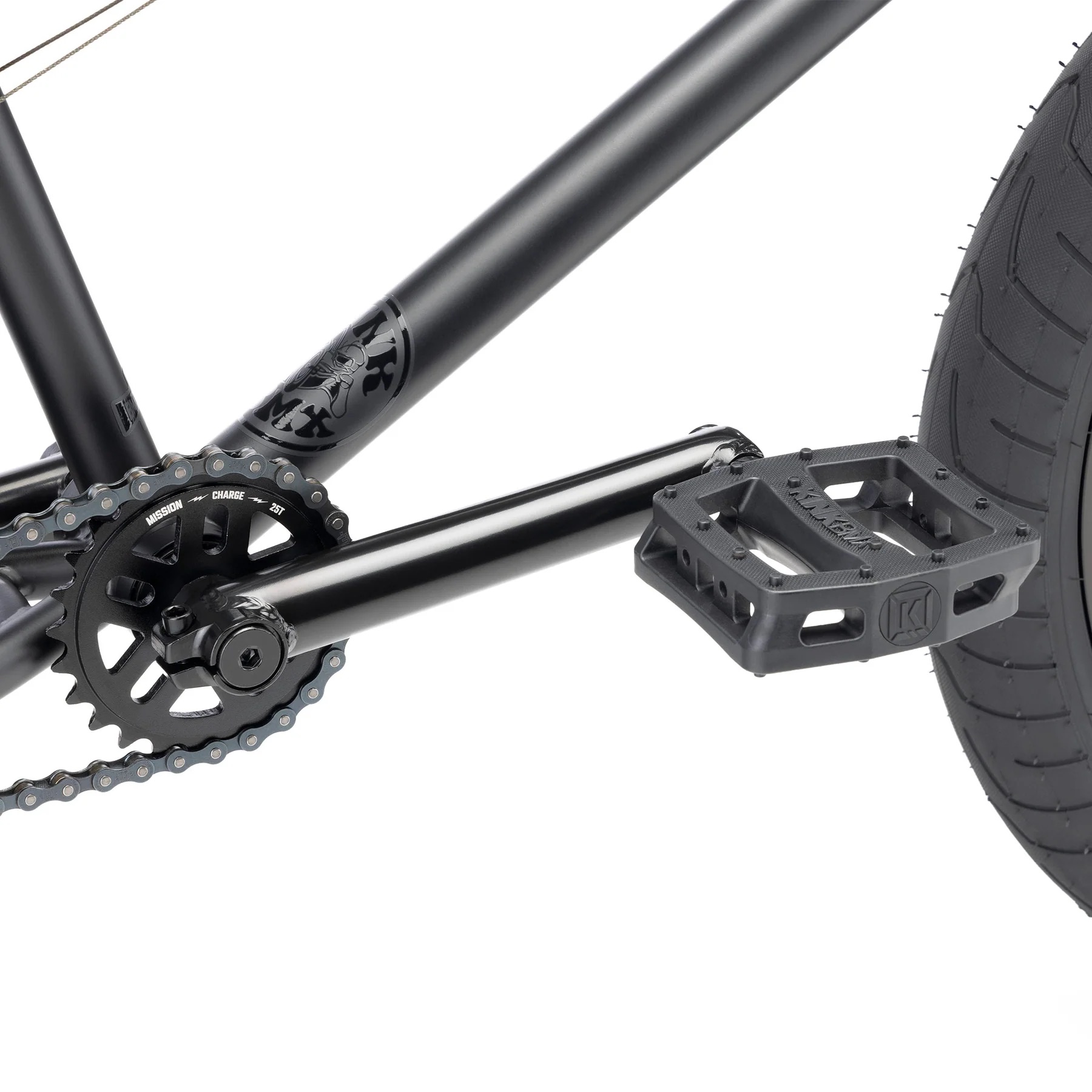

CRANKS Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline
RIMS Mission Mylar
BOTTOM BRACKET Sealed Mid 19mm

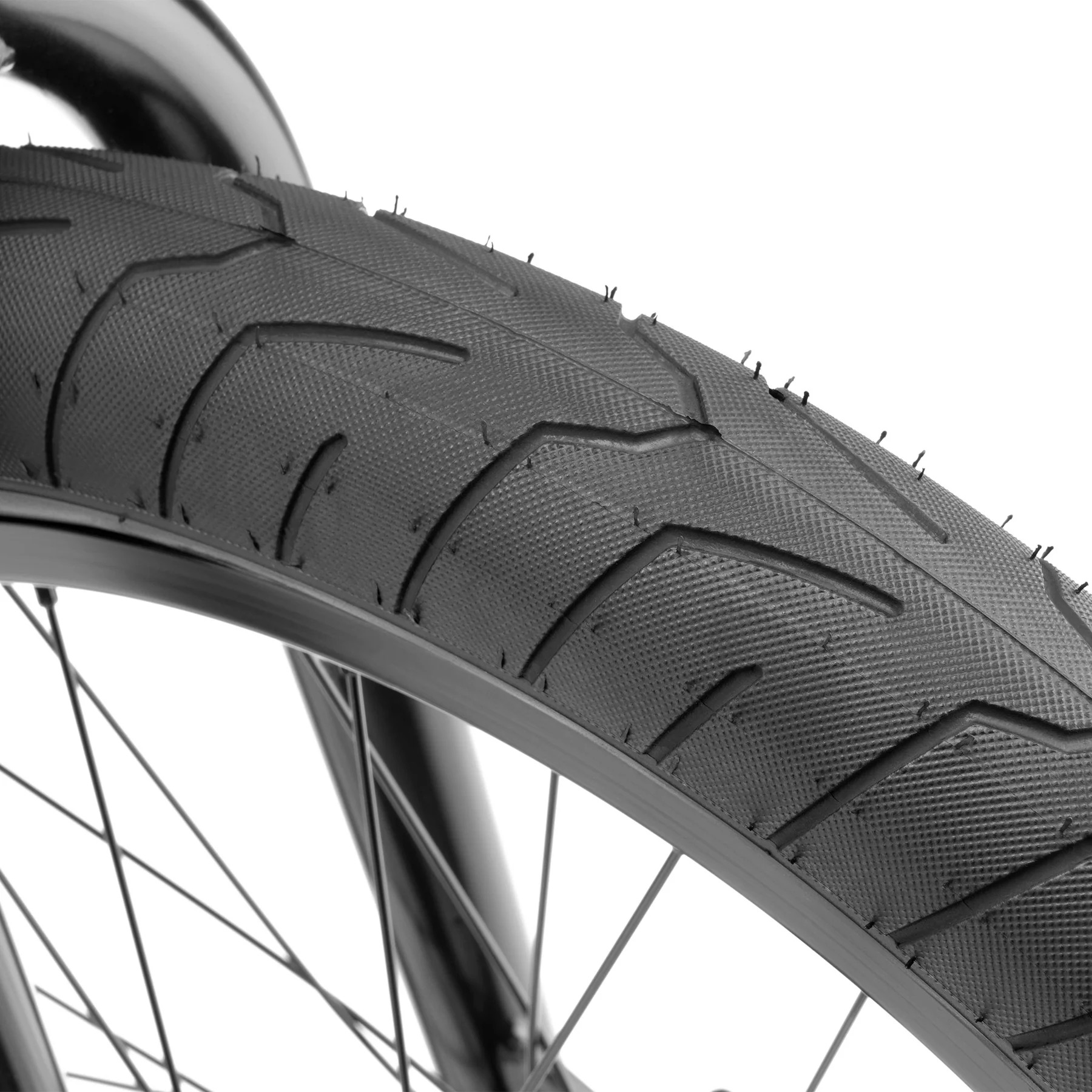

TIRES Kink Sever 2.4"
PEGS  N/A
WEIGHT  27lb 11oz / 12,558kg
