Harobikes - Thread Slope

The Thread Slope is the ultimate model in the Thread line. With its new X6 tubing dual suspension frame, it features 100mm of front travel with a Manitou Circus Expert fork and 80mm of rear travel without any chain stretch thanks to its central BB shell pivot for a simple, solid and efficient single-speed suspension platform. Light and precise, the Thread Slope features a gravity-proven FSA Gradient cockpit and crankset with a 30-14t gearing ratio, sealed bearing Haro SD Nylon Pedals, Spank Spoon rims, Pivotal MTB saddle and alloy seat-post, and a Haro oversize sealed rotor for fast bar-spin action. The Thread Slope offers a unique combination with its custom alloy detangler and hydraulic-assisted rear brake with the innovative TRP HY/RD disc caliper for high-performance braking and bar-spinning experience...

FEATURES
Thread Slope X6 series frame w/ 80mm travel
Swing-arm pivot around BB shell for no chain-stretch in rear wheel travel
22.6" TT w/ 420mm/16.5" reach

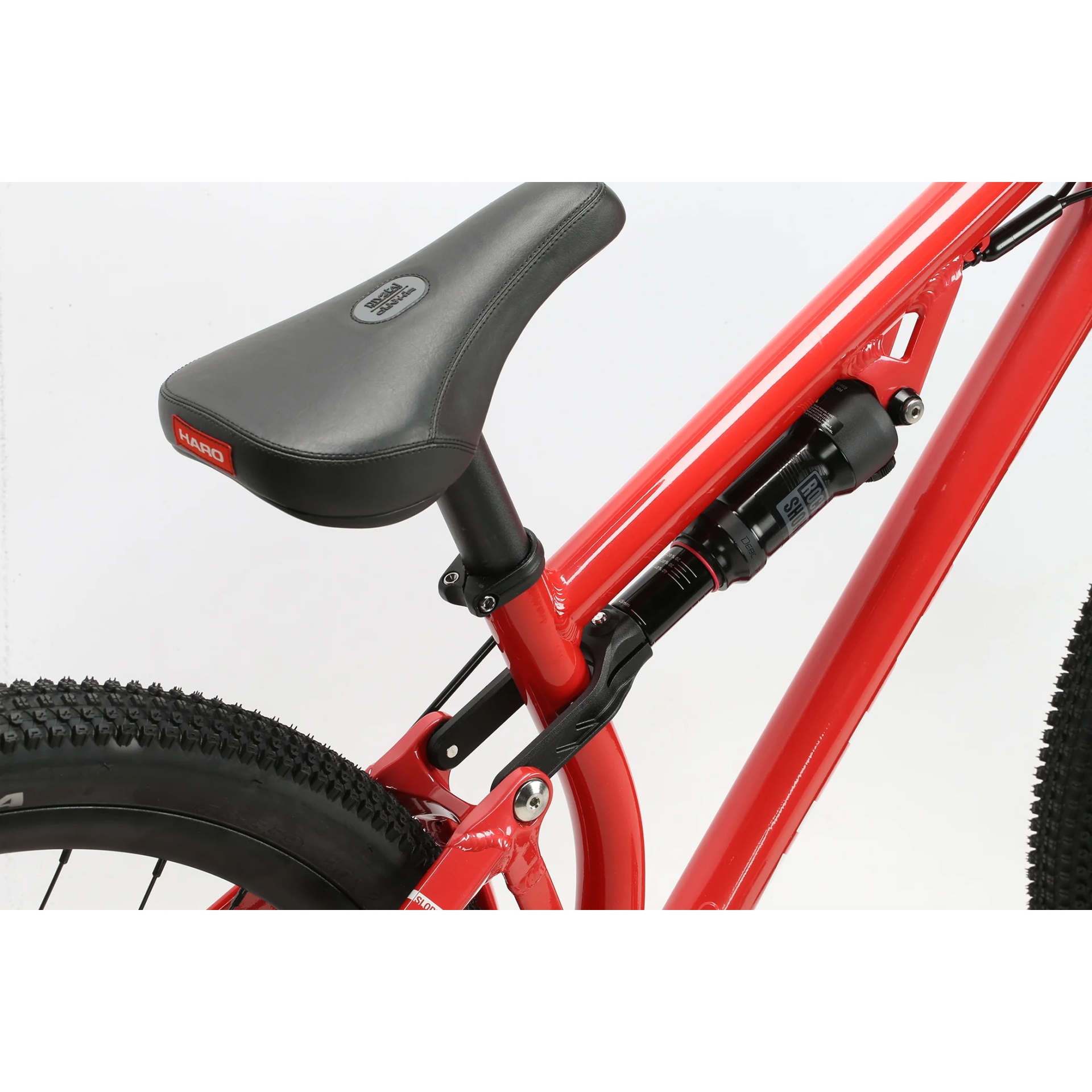

Rockshox RS Deluxe R rear shock
Custom Haro OS rotor

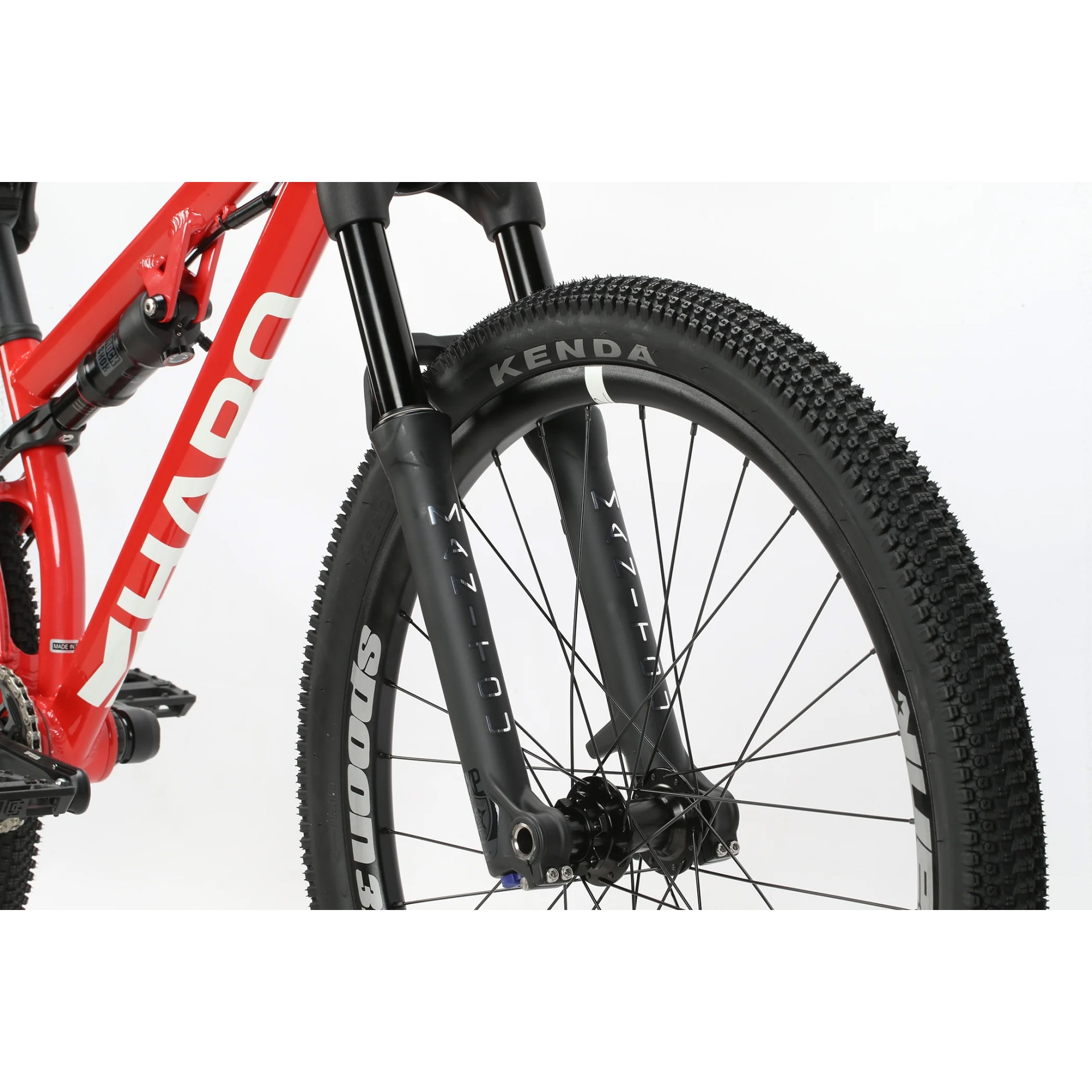

Manitou Circus Expert 100mm fork

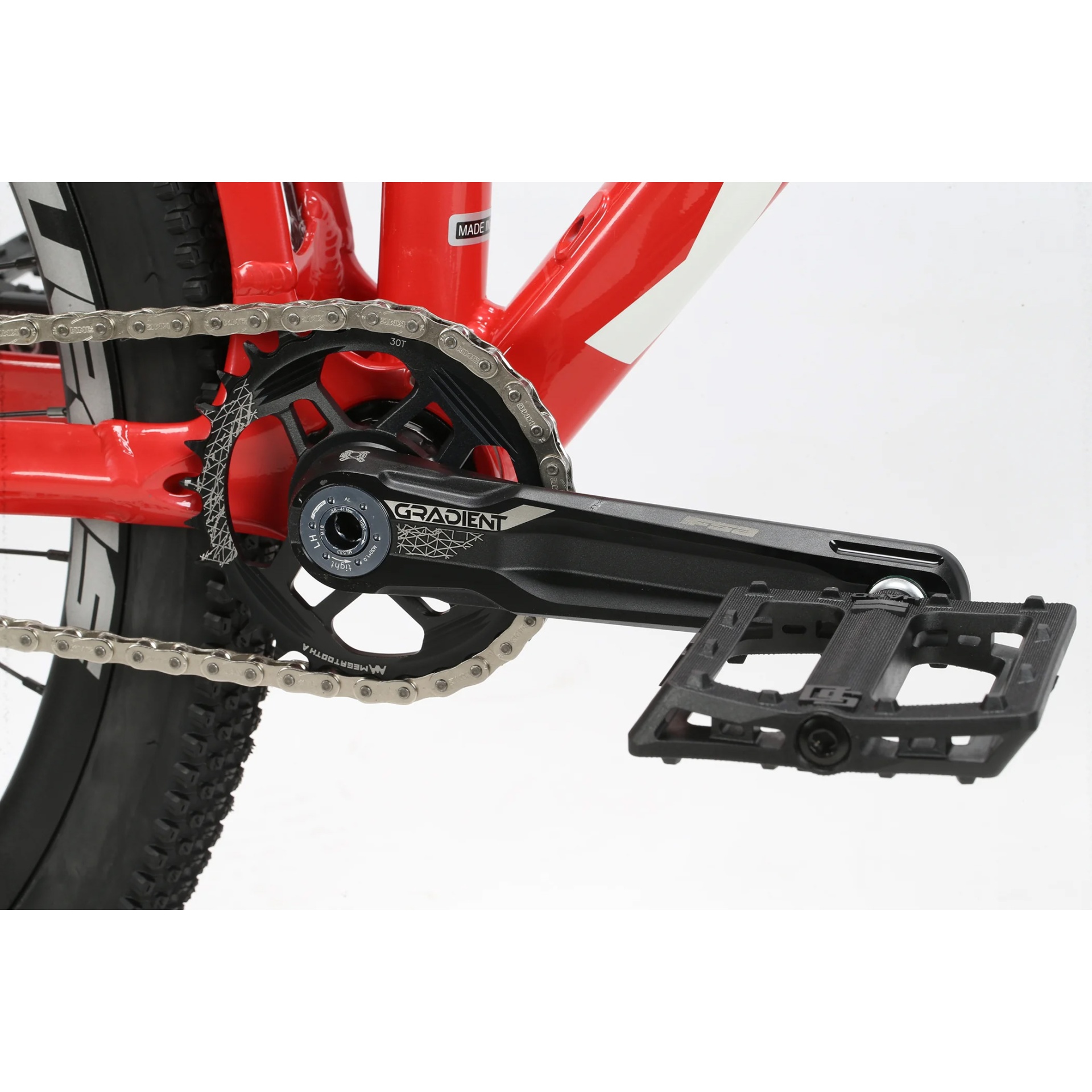

FSA Gradient 2-pc crankset, 30T alloy Megatooth chainring

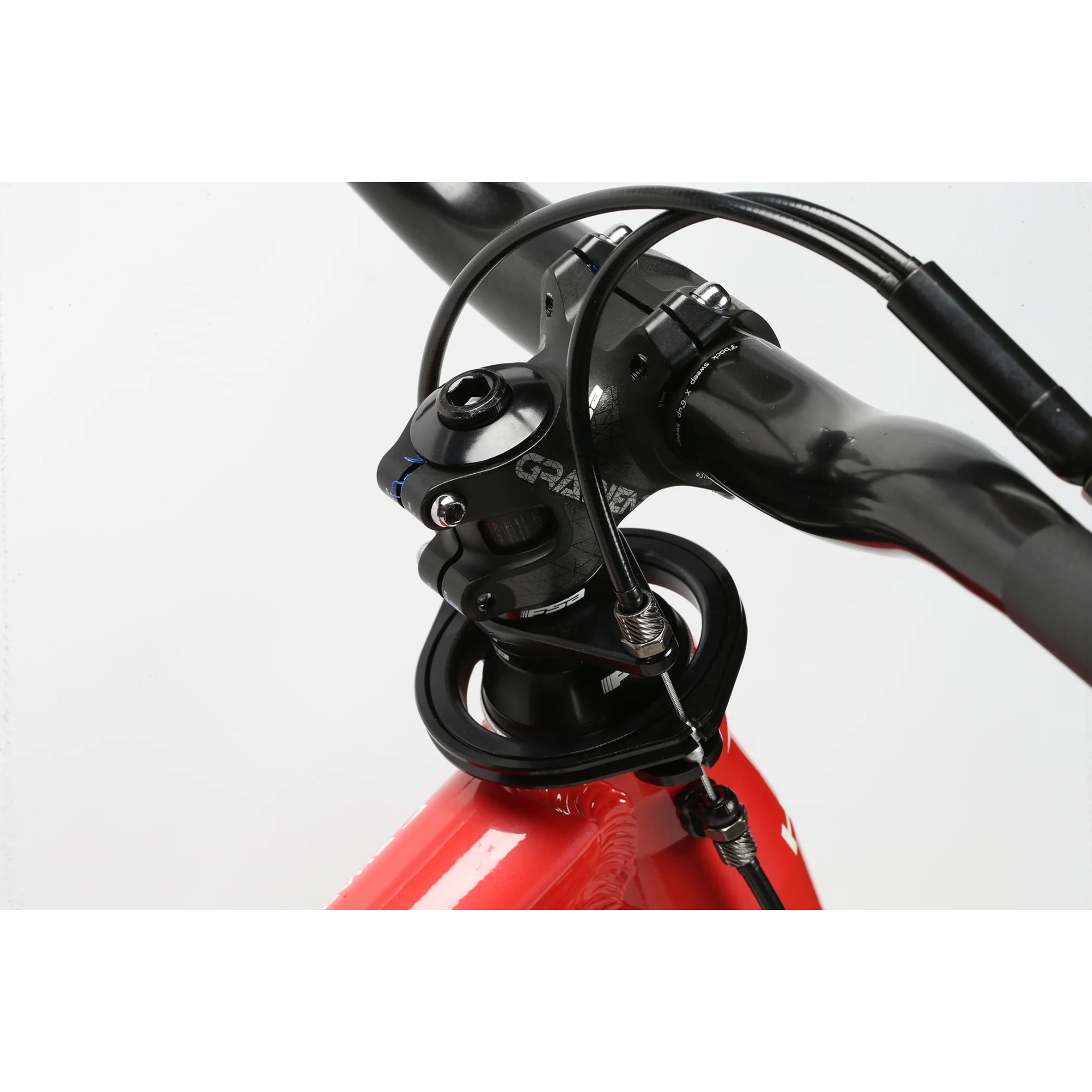

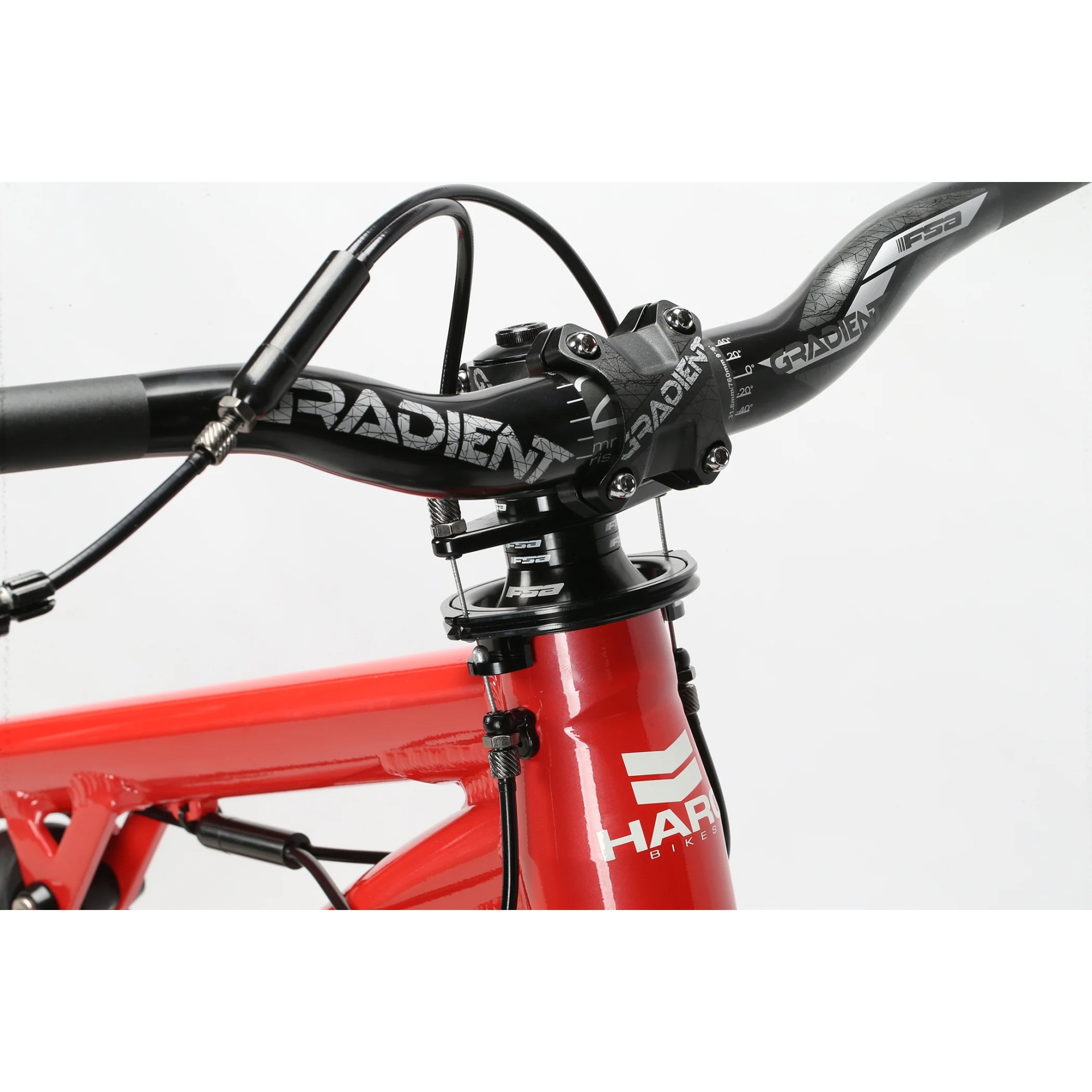

FSA Gradient 25mm rise bar & stem
Haro Pivotal saddle and post
Spank Ind. Spoon alloy DW 32h rims
Pivit alloy disc cassette hubs w/14t Crmo cog
Kenda Small Block Eight 2.35"/2.10" tires

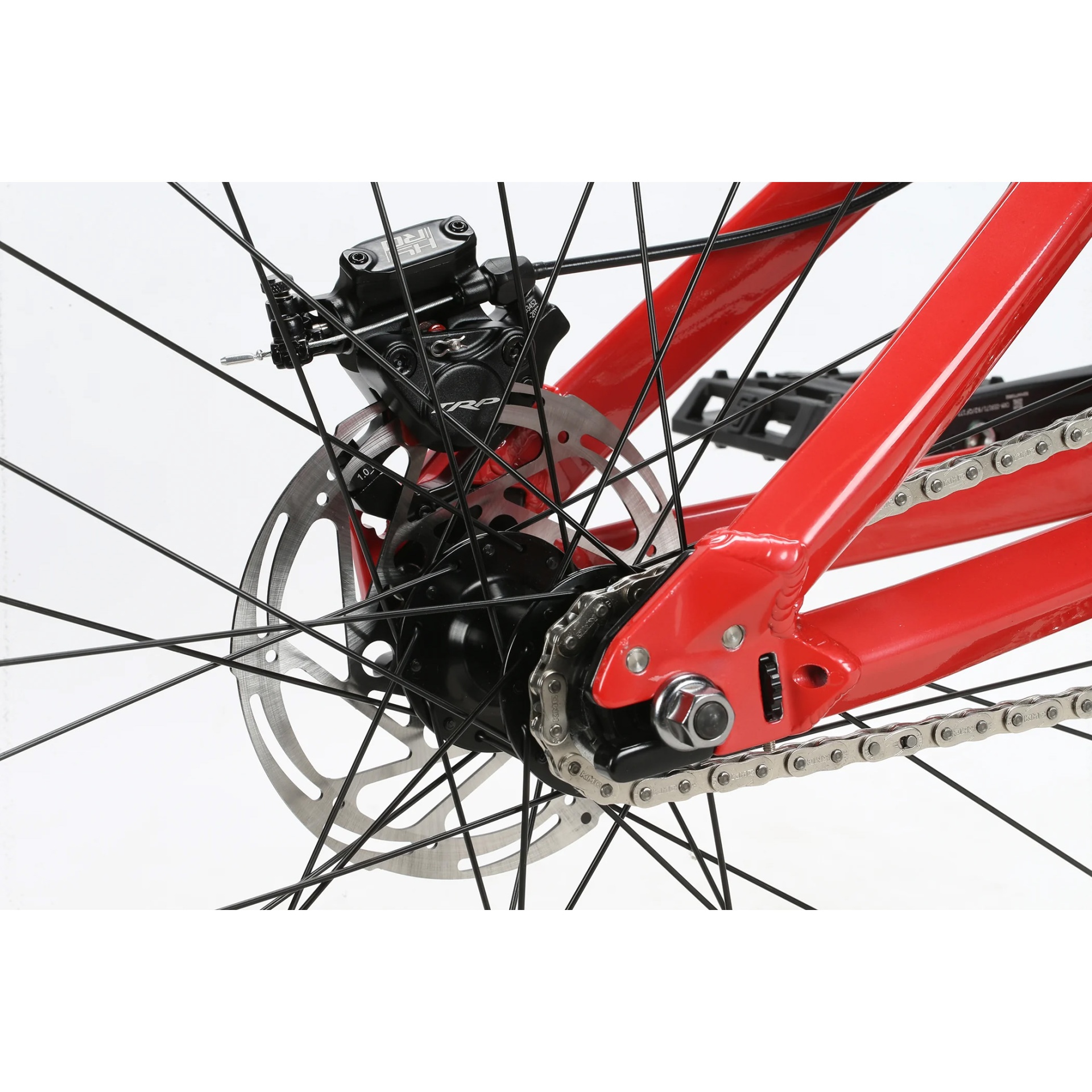

TRP HY/RD-C mechanical/hydraulic rear disc brake

SPECIFICATIONS

FRAMESET
Frame Haro Full X6 Aluminum Thread Slope | dual suspension frame | Internal head tube | 68mm Threaded BSA | ISCG Mount
Fork Manitou Circus Expert | 100mm travel | 1.5" Tapered steer tube | 110x20mm thru-axle
Frame Shock Rockshox RS Deluxe R | 190X45mm Debonair | 2 Tokens | MM Tune
Colors Navajo Red

DRIVETRAIN
Cranks FSA Gradient Modular 1X Direct Mount | 170mm | Megatooth 30T Forged Aluminum Chainring
Pedals Haro SD Nylon | Sealed bearings
Chain KMC Z1 HX | 1/2" X 1/8"
Bottom Bracket FSA BB-392-EVO | sealed bearings
Front Derailleur
Rear Derailleur
Derailleur Shifter
Freewheel/Cassette 14T Chromoly cog

WHEELS
Tires Kenda Small Block 8 | 26x2.35" Front | 26"x2.10" Rear | 60 TPI
Wheels/Rims Spank Ind. Spoon aluminum doublewall, 32h
Hubs Pivit sealed bearing aluminum disc | singlespeed cassette | 20mm front thru axle | 32h

BRAKING SYSTEM
Brakes TRP HY/RD-C 160 | Cable / Hydraulic Disc Brake for IS Rear Mount | 160mm disc
Brake Levers Odyssey Trigger for Single Gyro upper cable

OTHER COMPONENTS
Grips/Tape Velo Lock On
Handlebar FSA Gradient Riser | 25mm Rise | 9 Deg. Backsweep | 6 deg. Upsweep | 31.8mm Clamp
Stem FSA Gradient 1-1/8" | 45mm Ext.
Headset FSA # 51 | 1-1/8"-1.5" Aluminum | top | lower AC Bearing
Saddle Haro Pivotal w/ hollow bolt
Seat Post Pivotal aluminum | 31.6mm
Seat Clamp Pivit aluminum 35mm
Extras Haro OS Teflon Bearing Rotor | Upper & Lower rotor cables

SIZE Thread Slo
A. Seat Tube (C-T) 320mm (12.6")
B. Top Tube (Effective) 574mm (22.6")
C. Head Tube Angle 69°
D. Seat Tube Angle 67°
E. Chainstay Length 390mm (15.4")
F. BB Drop 6mm (0.2")
G. Wheelbase 1058mm (41.7")
H. Head Tube Length 115mm (4.5")
I. Standover 710mm (28")
J. Stack Height 548mm (21.6")
K. Reach 420mm (16.5")
L. Fork Height 478mm (18.8")
M. Fork Offset 41mm (1.6")
N. Stem Length 45mm
O. Bar Width 760mm
P. Crank Length 170mm
