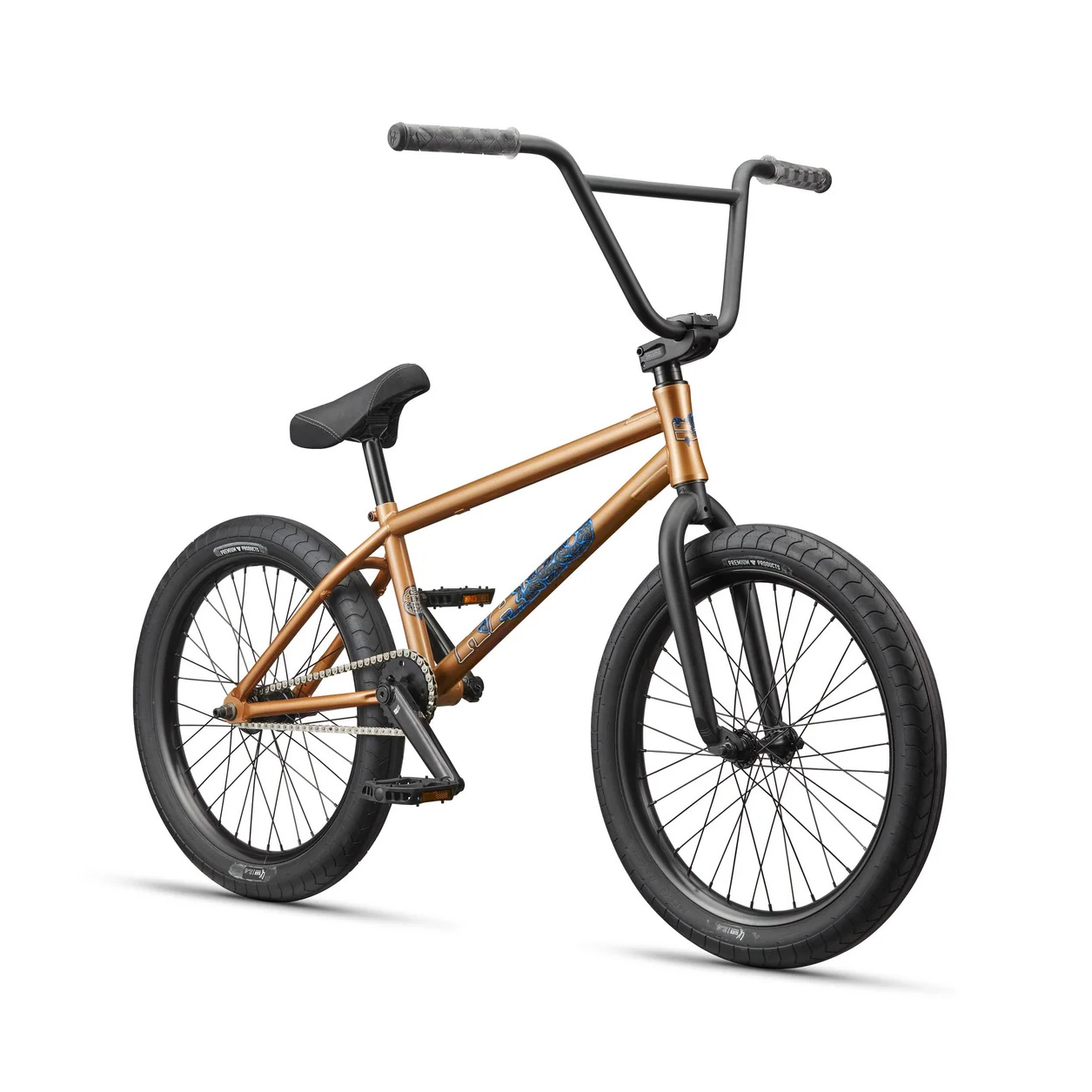

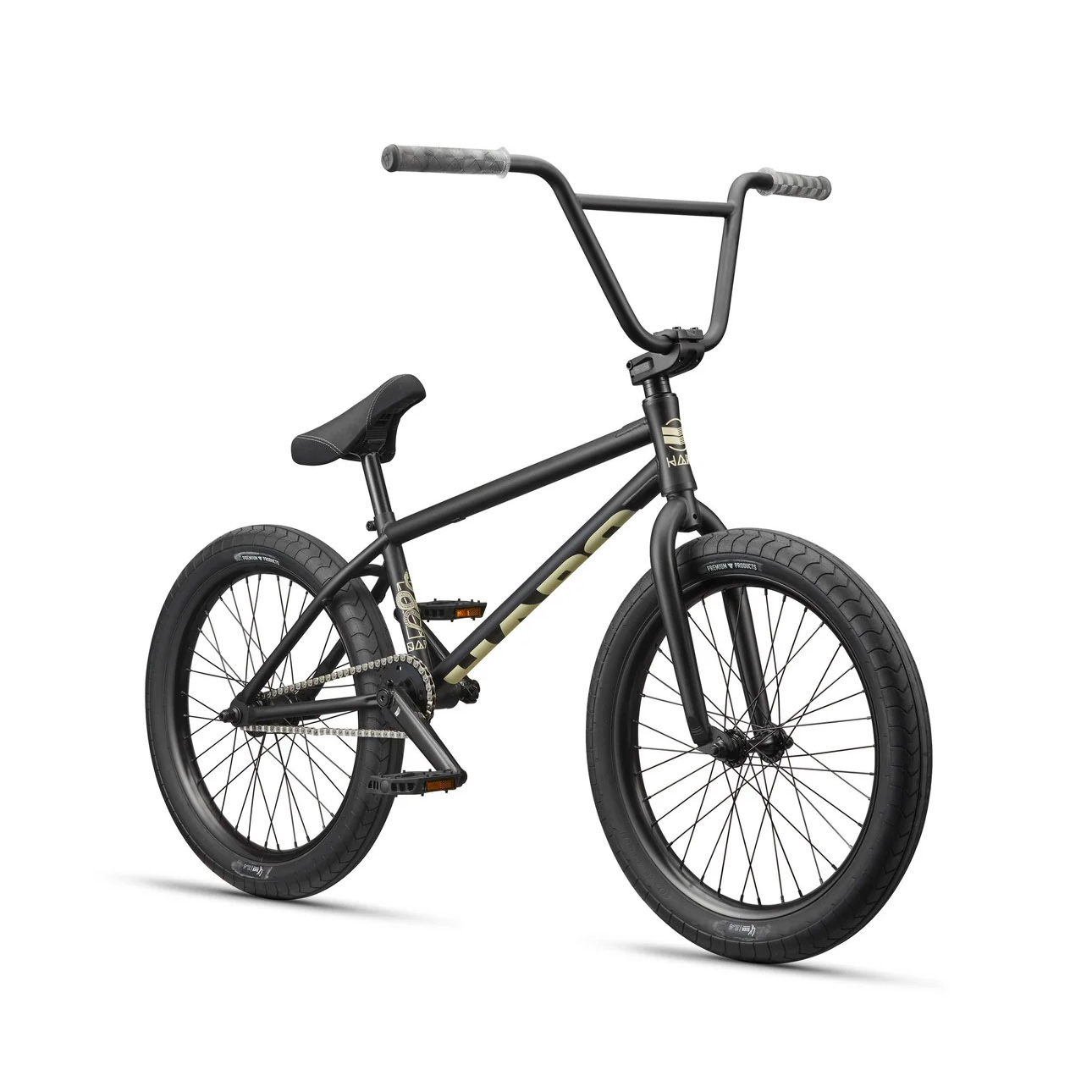

Harobikes - Dana

The Dana delivers pro-level street performance with Haro’s signature touch. Built on the same frame as the Hoover and finished in custom rider-designed colorways, this bike is made to rip at a more accessible price point. True Haro geometry, pure street style.

FEATURES
Full chromoly construction. 20.5" top tube. Removable brake mounts. Integrated head tube. Mid bottom bracket.
Full chromoly with threaded steerer tube and tapered legs. 34mm offset.
Haro 9" rise chromoly. 12 degree back sweep. 2 degree up sweep.
Premium Products flangeless 160.5mm.
Double wall 20" alloy rims. Pinned seams. 32mm wide. 36 hole.
Haro LaMesa 20 X 2.4" front & rear
Premium Pivotal.
Alloy pivotal 200mm.

SPECIFICATIONS
Frame: Full chromoly construction. 20.5" top tube. Removable brake mounts. Integrated head tube. Mid bottom bracket.
Fork: Full chromoly with threaded steerer tube and tapered legs. 34mm offset.
Headset: Integrated 1-1/8" headset.

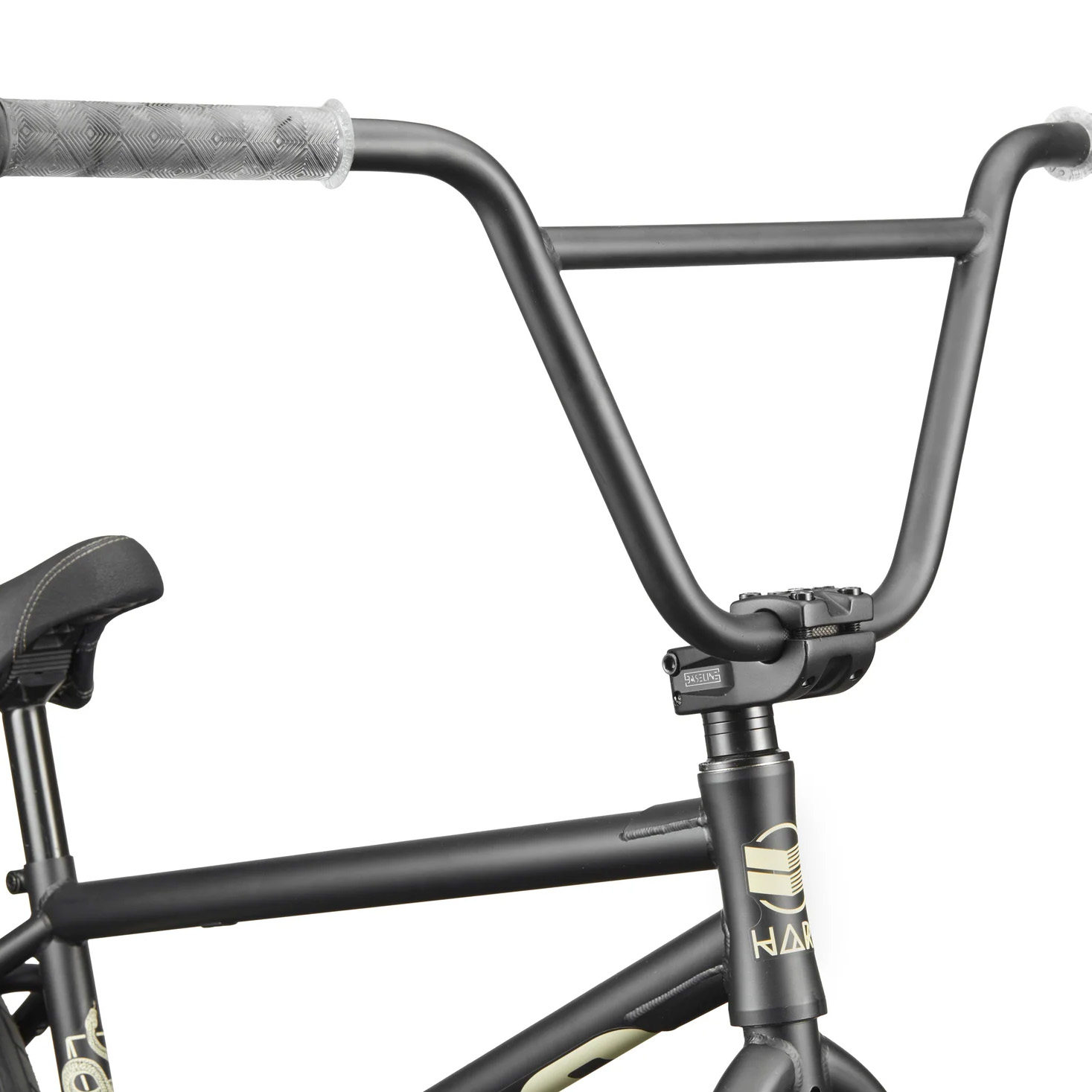

Handlebar: Haro 9" rise chromoly. 12 degree back sweep. 2 degree up sweep.
Stem: Haro Baseline forged aluminum top load. 48mm reach.
Grip: Haro Baseline flangeless. 163mm.

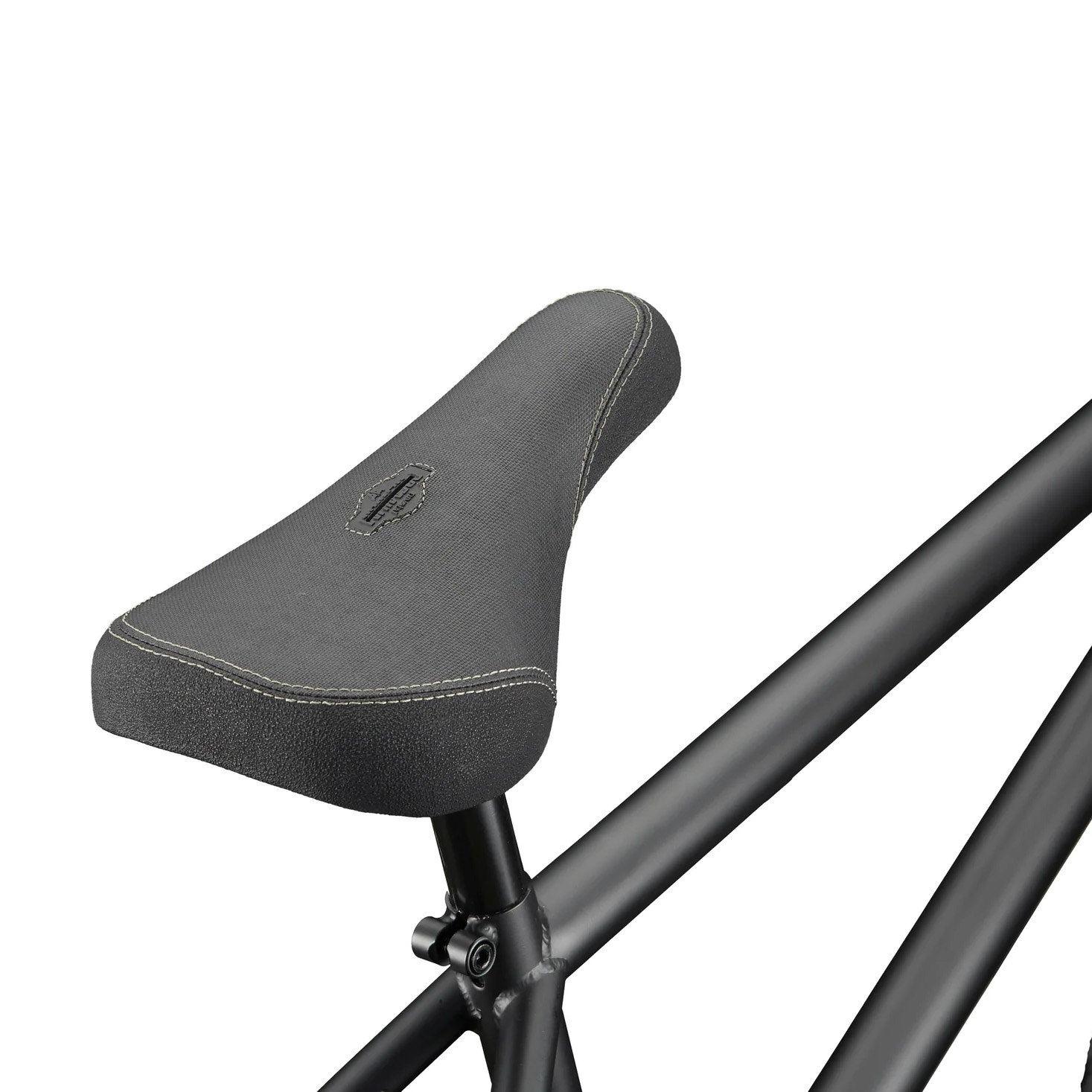

Saddle: Haro Baseline Pivotal.
Seat Post: Haro Baseline Pivotal alloy. 200mm.

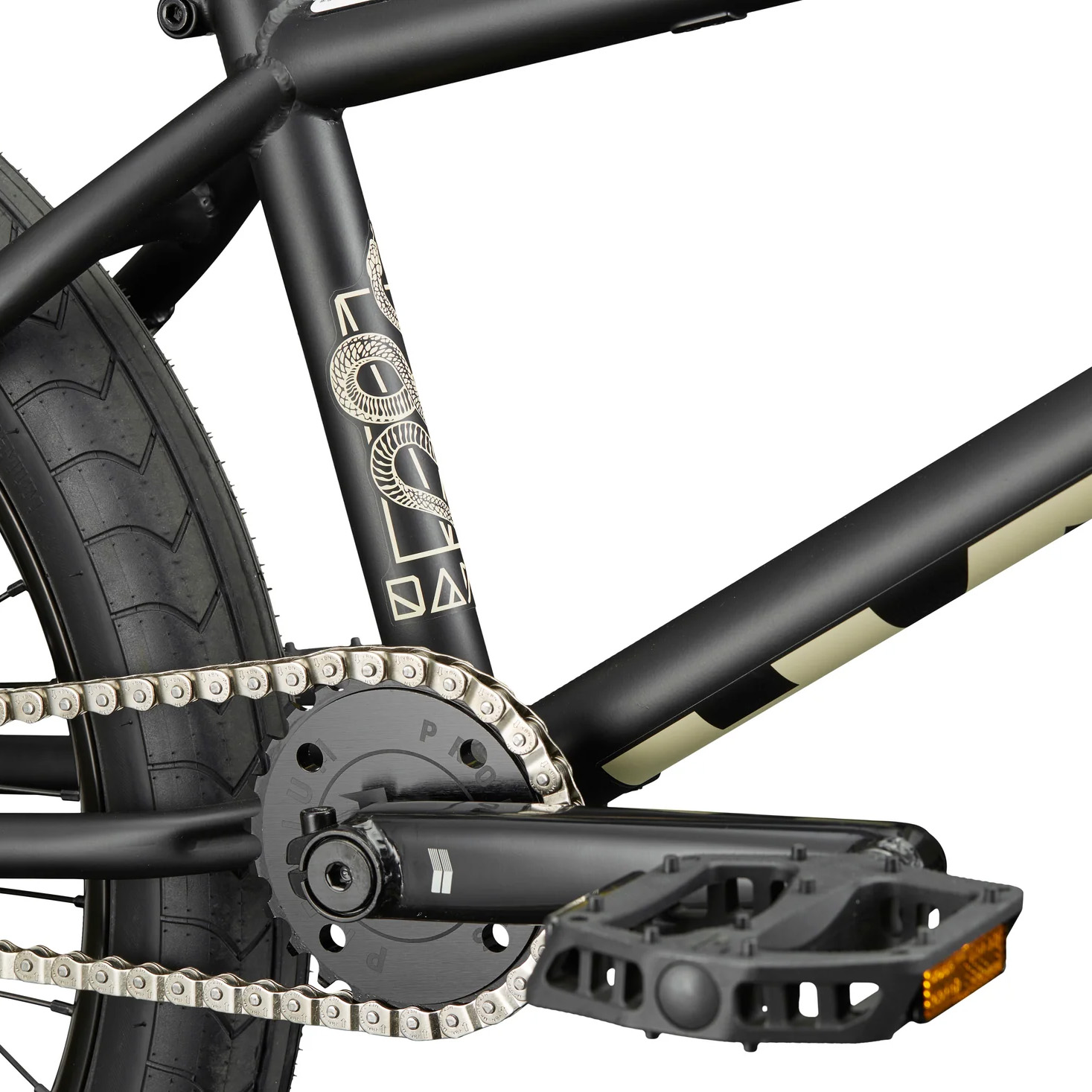

Cranks: Haro 3-piece chromoly cranks. 170mm length. Forged 19mm spindle.

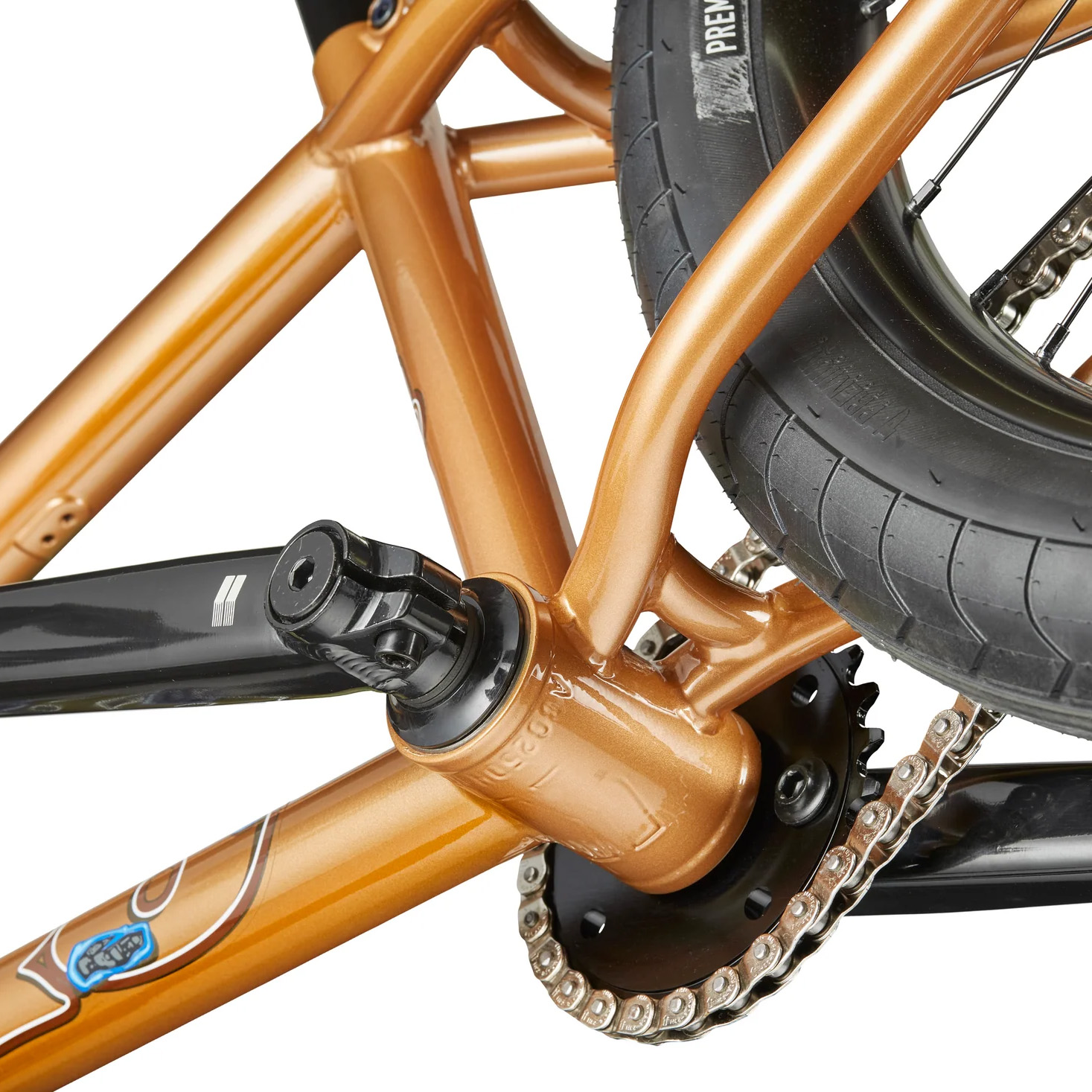

Bottom Bracket: Sealed mid bottom bracket.
Sprocket: Haro CNC alloy sprocket. 25T.
Chain: KMC Z1 1/8" width
Pedals: Haro Baseline poly platform. Chromoly axles.
Rims: Double wall 20" alloy rims. Pinned seams. 32mm wide. 36 hole.
Front Hub: Alloy front hub with sealed bearings. Female 3/8" axle.

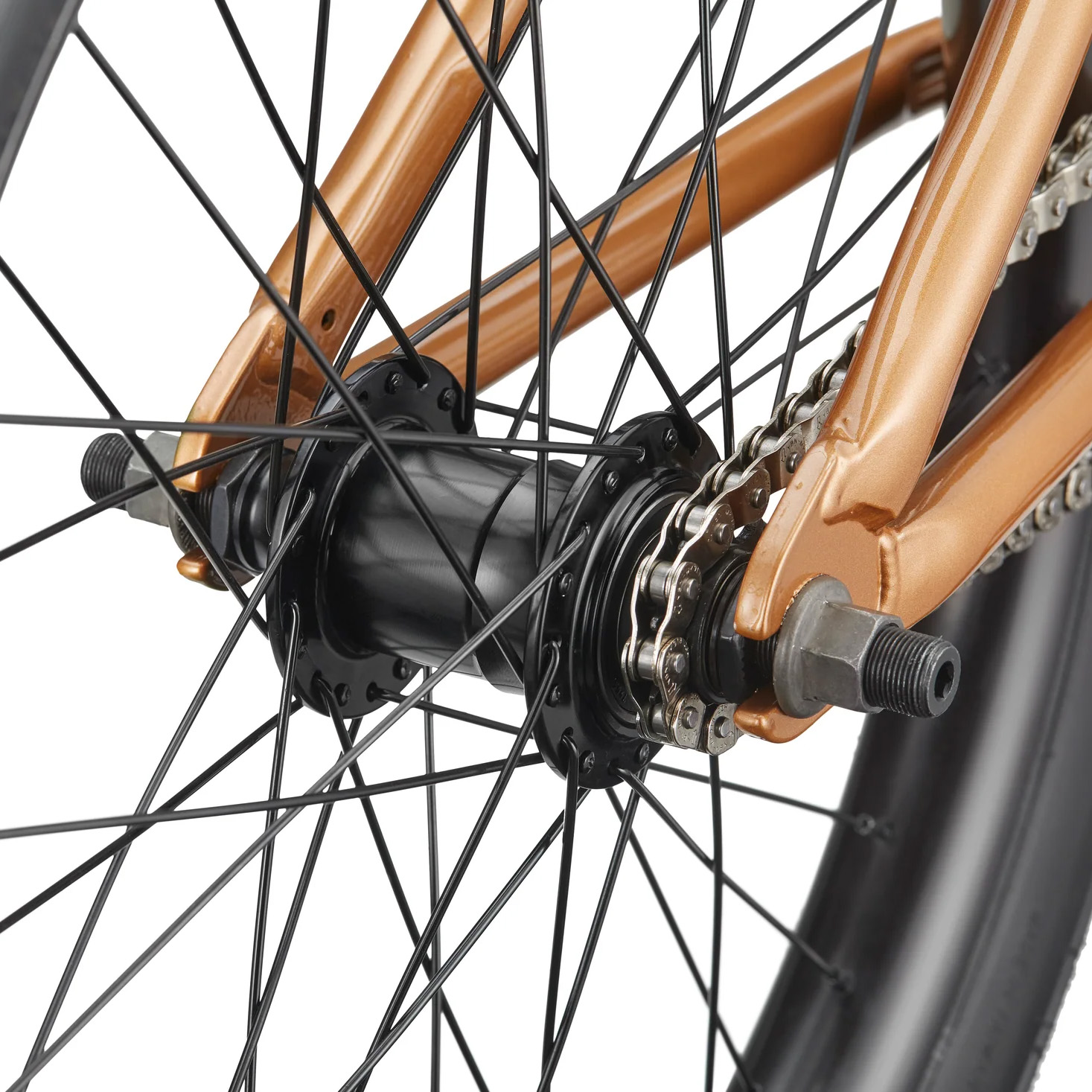

Rear Hub: Sealed cassette rear hub. Alloy shell. 9T driver. 14mm axle.
Tires: Haro LaMesa 20 X 2.4" front & rear
Extras: Nylon sleeves with alloy core (includes 2 pegs).
