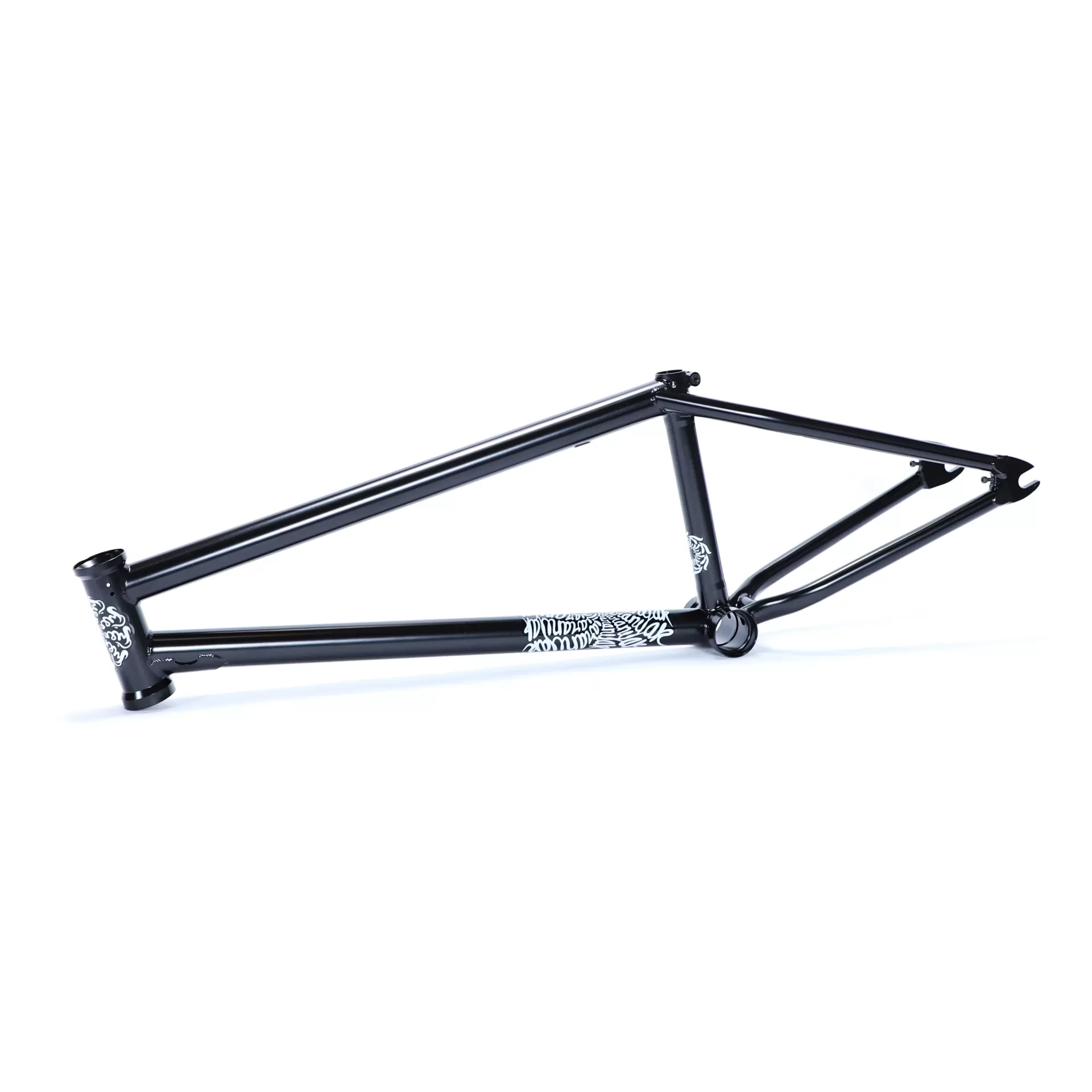

Fiend - Varanyak V2 Frame

Designed by Colin Varanyak and constructed with 4130 chromoly throughout. Features include heat-treated Mid bottom bracket shell and integrated headtube, double-butted toptube, double-butted downtube with external gusset, externally butted seattube with integrated post clamp, tapered seatstays and heat-treated 6mm thick dropouts with integrated chain tensioners. Available with or without removable brake mounts and cable guides.



Geometry:

20.25″, 20.5″, 20.75″, 21″ top tube lengths

75.5* head tube

71* seat tube

8.8″ seat tube height (bottom bracket to top tube, center to center)

12.7″ chainstays

5lbs. @ 20.75″
