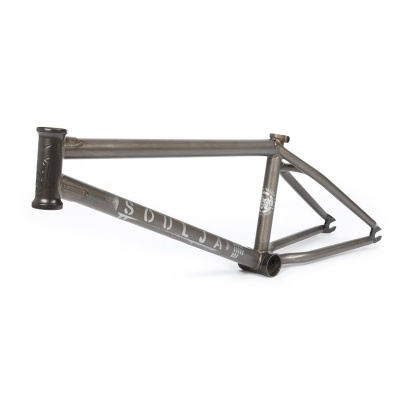

BSD - Soulja V4 Frame

New for 2021, the latest version of Dan Paley's signature Soulja frame, updated using our new Superscoop chainstay tubing for extra tire clearance when your wheel is slammed. This frame features a 75.2 degree headangle, 8.8” standover, 12.8 – 13.2” rear end and invest cast dropouts with built in chain tensioners

TECH SPECS
Toptube lengths 20.6 / 20.9 / 21.2
Headtube angle 75.2°
Headtube length 117mm
Seattube angle 71°
Rear end length 12.8-13.2"
BB Height 11.7"
Standover height 8.8"
Weight 5lbs - 2,267kg
Brake mounts none - brakeless
Tubing Sanko Japanese seamless 4130 CrMo / triple butted
Headtube Heat treated 4130 CrMo / CNC / Offset thickness
Bottom Bracket Heat treated 4130 CrMo / CNC machined
Chainstay SuperScoop tubing
Dropouts Heat treated 4130 CrMo / Invest cast
Seatclamp Heat treated 4130 CrMo / Invest cast
Colours FLAT RAW / OCEAN CAMO
