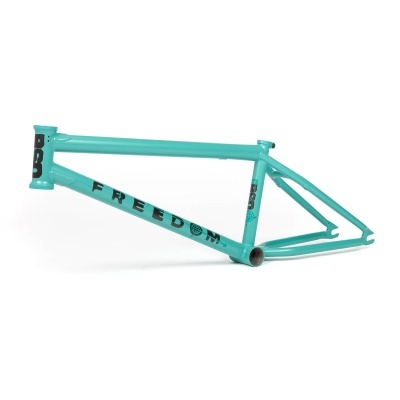

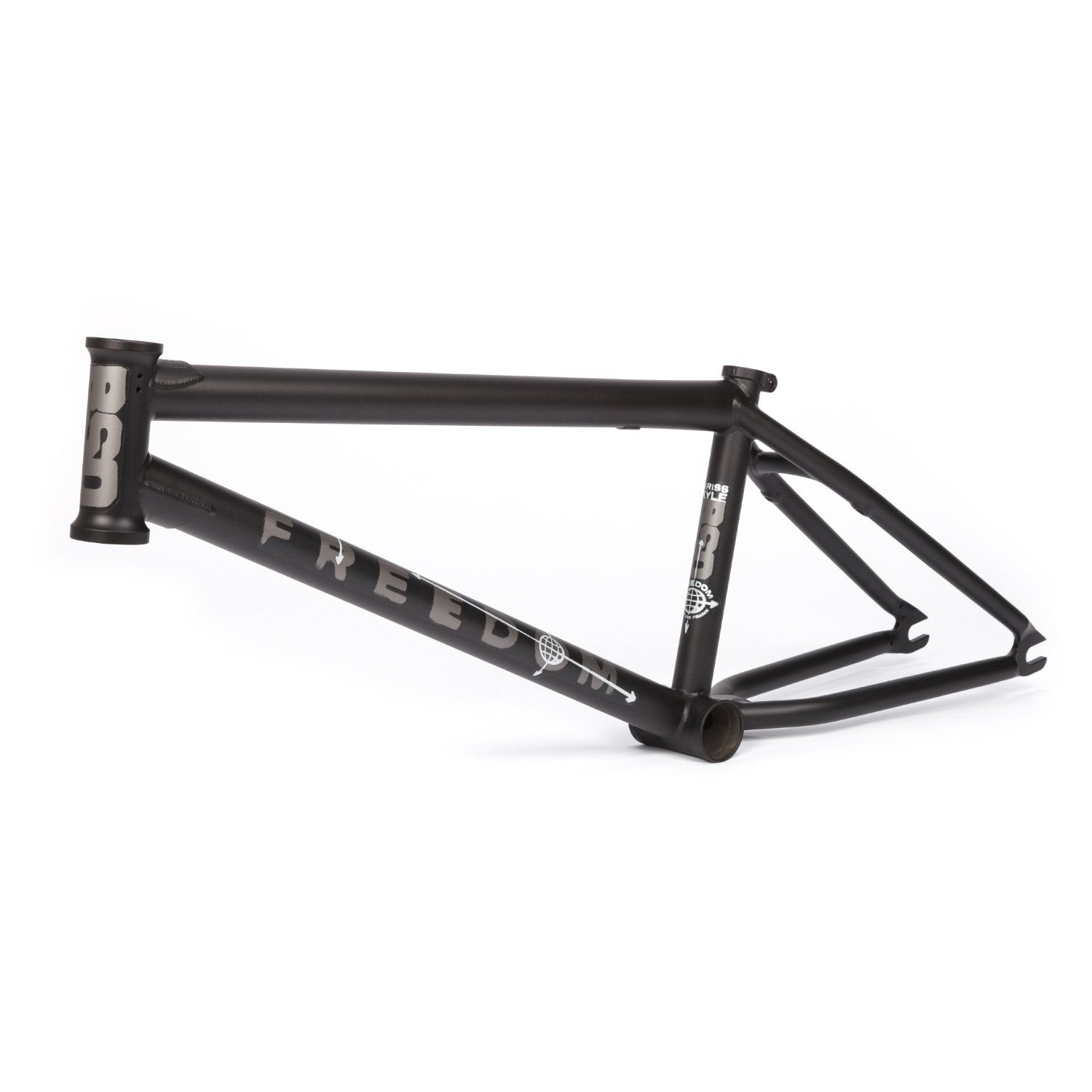

BSD - Freedom Frame

Kriss Kyle is the type of rider who likes to ride everything, bowls, street, dirt, the lot. His signature Freedom frame is designed to perform well on all terrain, this frame combines the stability of a low 11.5" BB, the responsiveness of a 75° headangle and the versatility of a short rear end. To create a stiffer rear triangle we've utilized an invest cast wishbone and invest cast seatstay bridge, great for sideways landings!!

TECH SPECS
Toptube lengths: 20.2 / 20.5 / 20.8 / 21.1 / 21.5
Headtube angle: 75°
Headtube length: 117mm
Seattube angle: 69.5°
Rear end length: 13.2″ – 13.625″ - note the 21.5″ frame has a longer rear (13.4″ – 13.825″)
BB Height: 11.5"
Standover heigh:t 9"
Weight: 5lbs / 2.26kg
Brake mounts: removable - brake kit available separately
Tubing: Sanko Japanese seamless 4130 CrMo / triple butted
Headtube: Heat treated 4130 CrMo / CNC / Offset thickness
Bottom Bracke:t Heat treated 4130 CrMo / CNC machined
Chainstay Wishbone: Heat treated 4130 CrMo / Invest cast
Dropouts: Heat treated 4130 CrMo / Invest cast
Seatclamp: Heat treated 4130 CrMo / Invest cast
Colours CLASSIC RED / LITE TEAL / FLAT BLACK
